The Titan Boost 500 Rigid Kit comes complete with everything you need for a reliable, off-grid power system for any situation. Ideal for power outages, recreational vehicles, or an off-grid home with minimal power consumption. With five (5) 100-watt rigid solar panels and one lithium Iron Phosphate battery pack, it’s the perfect size for running bare essentials, including a refrigerator or freezer, lights, computer or laptop, tv, and other small electronics for an extended period of time. Learn More >
Back ordered: Expected ship date Dec.
20% off for a limited time
The Titan Boost 500 Rigid Kit comes complete with everything you need for a reliable, off-grid power system for any situation. Ideal for power outages, recreational vehicles, or an off-grid home with minimal power consumption. With five 100 watt rigid solar panels and one lithium battery pack, it's the perfect size for running basic essentials including a refrigerator or freezer, lights, computer or laptop, tv, and other small electronics for an extended period of time. Utilizing the 500 watts of solar, the Titan will charge from 0% battery to full in about four hours (depending on location and weather).
Using only quality and efficient components, the Titan is the most reliable and versatile system on the market. Here are some of the key features that make it in a class of its own.
REMOVABLE / EXPANDABLE
DUAL MPPT CHARGE
2500 WATT HOUR
3000 WATT HIGH
Removable / Expandable Battery
This innovative approach will give you greater portability and flexibility in what you can power with your solar generator. By simply adding more battery packs you can expand or replace your batteries quickly and easily. By separating the battery from the other components, you can easily carry each component.
Dual MPPT Charge Controllers
With the Titan, we only used quality, reliable components. For example, most solar generators use cheap, low quality charge controllers that cannot step the voltage down to produce high amps. Most don't allow for voltages over 30-50 volts. The Titan on the other hand, can take up to 240 volts! This means your solar panel wires will have very low amps running through them making them much more efficient (they will be cool to the touch where others will be very hot). It also makes wiring up your solar panels much easier and safer.
2500 Watt Hour LiFePo4 Battery
With a full 2500 watt hours usable power per battery, the Titan battery is one of the largest lithium battery capacities you can find in a portable solar generator.
Super Fast AC Charging, 700 Watts Standard
We include one powerful 25A AC charger that can charge your battery pack in around 3.5 hours. You do have an option to add More charges to charge even faster.
3000 Watt High Efficiency Inverter
Our pure sine wave inverter is extremely powerful- twice as powerful as comparable solar generators! It is also extremely efficient, with a no load power draw of as low as 8 watts, and efficiencies up to 92%! Our inverter also has a 5 second surge of 6,000 watts to start equipment such as Air conditioners, water pumps, air compressors and more.
External Battery Compatibility
We designed the Titan solar generator to be compatible with nearly every 24V battery type. The Titan Solar Generator uses a lithium Iron Phosphate battery with a voltage range of 20V to 27.2V. With this setup, it works perfectly with a 24V LiFePo4 batteries.
Note: Any battery connected to the system must be charged to the same voltage as other batteries in the system unless it is a Titan LiFePo4 battery. See the manual for more instructions.
Battery specs for each battery:
90ah (usable) 2500 watt hours (usable)
Maximum charge current:
50A (approximately 1300 watts)
Maximum continuous discharge:
130A (approximately 3500 watts)
Maximum surge discharge current (10 seconds or less):
300A (approximately 7700 watts )
12×18.5×5 in (not including the feet)
120V AC (pure sine wave)
Continuous power output:
Peak power output:
6,000 watts for 5 seconds
Inverter no load power consumption:
5-15 watts (typical 10 watts)
Size (top portion not including the battery):
12 x 18.5 x 8.5 in (not including the feet or cary handle)
Solar MPPT charge controller:
Dual MPPT controllers
35V to 240VDC
Maximum input amps:
30 amps per input port
Maximum charging amps:
80A (40A per port)
up to 2000W (using both ports, and at least two batteries)
Solar panel specs (per panel):
Maximum power (Pmax)
Voltage maximum power (Vmp):
Current maximum power (Imp):
Open circuit voltage:
39.2 X 21.25 X 1.4 in
Up to 2800 watts with four 25A chargers (must have two batteries to use three or 4 ac chargers)
Car port charging:
85 watts (with optional charger)
Number of outlets:
6-15A, and one 30A RV outlet
two 65 watt usb-C
2 - cigarette ports
1- SB50 port
Regulated 13.8V. Max 20A total
37lb power module; 47lb battery
18.5x12x13.5 (battery and Power module together, not including the feet or cary handle)
Solar panel mounting:
Z Brackets mount panels directly to a roof
Tilt Mounting allows panels to be tilted at an angle.
RV waterproof entry:
This will include one or two (depending on the kit) water proof boxes that mount to the top of your rv. This will allow you to connect your solar through your roof and to the Titan 240sp power station. It comes with 25' of wire and anderson power pole connectors to plug directly into the power station.
Cart with wheels:
Our heavy duty cart is capable of holding up to 1200 lbs, and it connects directly to the bottom of a power station or a battery.
The cap goes on top of the battery, or power module to give a clean flat surface, while moving the terminals to the side, for expantion.
The Base goes on the bottom of a battery or power module to provide side ports for expansion.
By adding the warranty addon, it will extend the warranty from 5 years to 10 years for all batteries and power module in the kit.
- (1) Titan Boost power module with one battery
- (5) 100 watt rigid solar panels
- (1) Mc4 extension wire of chosen length (2 wires)
- (1) MC4 to anderson adapter (for connecting solar panels)
- (1) 25A AC charger
Depending on options chosen at purchase:
- Car charger for charging from a car cigarette port
- Solar Panel Mounting
BEST SUITED FOR

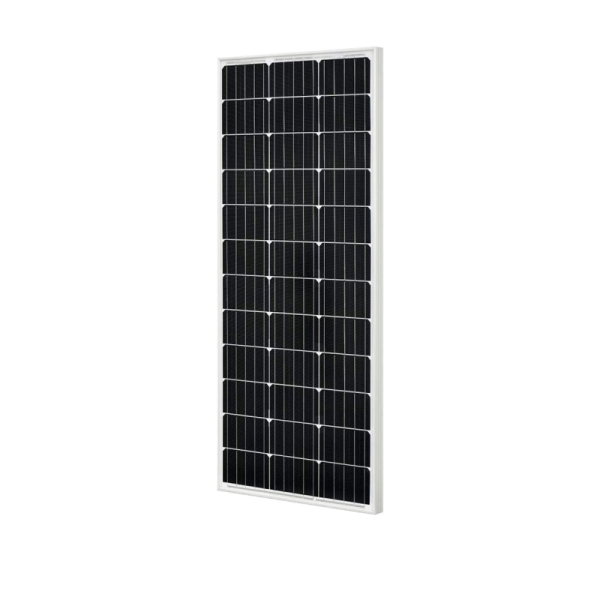

A favorite for your home, RVs, tiny homes, campers, and similar applications. Easy to install and provide excellent efficiency per space.
Frame & corner protection
Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades.
With one of the highest 23.7% efficiency in the industry, you can make the most use of the sun and convert the sunlight into clean energy.
Not Sure What You Need?
There are three things we need to determine what you will need for your solar generator; 1. What type of solar panel do you need? 2. What size of solar panels and batteries will be needed and 3. What is the total watts you will be needing and how with your generator be used?
We have created a quick and easy Calculator that will help you answer these questions. Click the button below to get started.
